Commercial Truck Equipment – Weldco Hydra-Lift and Amco Veba Cranes

Weldco Hydra-Lift

Weldco Hydra-Lift manufactures Truck Mounted Cranes ranging from 8-ton to 50-ton capacities. Formerly known as Pitman Cranes, the complete Hydra-Lift product line is proudly built in Canada with the highest degree of quality and workmanship to provide customers with safe, reliable lifts year after year.

Weldco offers numerous crane models having capacities from 8,000lbs up to 82,000lbs at a 10ft loaded operating radius, with boom lengths from 38ft to 100ft. Jibs are available in orientable and rigid styles to extend the reach of Weldco Hydra-Lift cranes all the way up to161ft tip height.

Here are just two examples from the extensive Weldco line which have been receiving much interest and generating strong sales at Commercial.

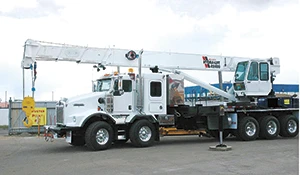

45-TON
WHL8010-100

With a 45-ton lifting capacity, long reach and a sub-frame suitable for fifth wheel installation, the WHL8010-100 Swing Cab Crane offers heavy lifting and versatility. Out and down outriggers with independently operated horizontal extension cylinders and vertical jack cylinders, give the operator true stability on uneven surfaces or in tight locations. The fully equipped cab provides the operator with a comfortable working environment in all weather conditions. Mounted on a tandem steer tri-drive rear axle chassis with fifth wheel, this crane is truly capable of heavy lifting and heavy hauling.

Features

• 80,000 lbs lifting capacity at 10ft load radius

• 100’ boom length or 110’ tip height (fully extended)

• 4 section 100’ fully proportional boom

• 30.5’ retracted length

• Continuous rotation

• Tapered rear subframe for fifth wheel installation

• Out and down outriggers

• Dual fan oil cooler

• 15,000 lb, 2 speed grooved drum planetary winch with integral brake for high efficiency and security, includes cable packer.

• High strength box construction, welded booms for maximum strength to weight ratio

• A2B and LMI system with digital radio weight indicator

• Pre-wired boom and cab for work lights

• Two cameras and one in-cab display (view right rear outriggers and winches)

• 40-ton four-sheave crane block (Easy Reeve)

Commercial Weldco 50

50-TON TAXI
WHL8210-100

The new Hydra-Lift WHL8210-100 Swing Cab Cranes, with a 50 ton lift rating, is ideally suited for the most demanding heavy lift jobs. Out and down outriggers have independently-operated horizontal extension cylinders and vertical jack cylinders for true stability on uneven surfaces or in tight locations. The fully equipped cab provides the operator with a comfortable working environment in all weather conditions. Mounted on a single steer tri-drive rear axle chassis, or tandem steer tandem rear axle chassis, the WHL8210-100 Crane delivers heavy lifting performance.

Features

• 82,000 lbs lifting capacity at 10’ load radius

• 100’ boom length or 110’ tip height (fully extended)

• 4 section 100’ fully proportional boom

• 30.5’ retracted length

• Continuous rotation

• 15,000 lb, 2 speed grooved drum planetary winch with integral brake for high efficiency and security, includes cable packer

• Out and down outriggers

• Dual fan oil cooler

• High strength box construction, welded booms for maximum strength to weight ratio

• A2B and LMI system with digital radio weight indicator

• Crane block stowage behind tank (lessens front end weight, clear vision, able to tilt hood

• Pre-wired boom and cab for work lights

• Two cameras and one in-cab display (view right rear outriggers and winches)

• 40-ton four-sheave crane block (Easy Reeve)

Amco Veba

Commercial Amco Veba

Commercial Truck Equipment (then Danco Equipment) introduced the Amco Veba line of articulating truck cranes into the Western Canadian marketplace in 1996, and has enjoyed great success in establishing the product as a superior quality, competitively priced solution for a wide range of applications.

Amco Veba has been designing and constructing articulating cranes since 1980. As a world-renowned articulating truck crane manufacturer, Amco Veba takes great pride in its extensive Quality Control System and capabilities, as well as its commitment to provide the highest levels of product support. Amco Veba is one of the very few manufacturers to own its hydraulic cylinder and metal-working supplier. This affords “state of the art” techniques in the manufacturing process.

Using a 3-dimensional CAD system, Amco Veba designs each individual component of the crane. It is able to manipulate the crane within the CAD system in order to test its movements and ensure it has functional geometry. By software analysis, every point of the crane is examined for stress to ensure each component is adequate. Data is sent to an outside engineering company for independent verification of calculations. Every new crane is designed in accordance with these established standards, to insure safety and compliance.

For more information on Commercial Truck Equipment’s complete line of cranes contact your local branch of CTE, or visit: www.comtruck.ca
