SMA 110P Crash Cushion: A Gamechanger in North American Roadside Safety

ATS Image28100Background

Crash cushions are devices intended to reduce the damage to structures, vehicles and motorists resulting from a motor vehicle collision. These impact attenuators are designed to absorb the colliding vehicles kinetic energy to maintain the physical integrity of passengers and drivers, and reduce the likelihood of injury or death.

The most important standards for crash tests on Crash Cushions are:

•  European Standard EN 1317 – recognizes 4 performance classes (50, 80, 100 and 110 km/h) and 3 types of vehicles (900 kg, 1300 kg and 1500 kg)
•  American Standard NCHRP 350 – recognizes 3 different performance classes (TL1, TL2 and TL3) and 2 types of vehicles (900 kg and 2000 kg)
•  American Standard MASH – recognizes 3 different performance classes (TL1, TL2 and TL3) and 2 types of vehicles (1100 kg and 2270 kg)

Ultimately, the most important factor is that the product provides the highest possible protection for drivers and passengers in the vehicle.

The SMA (Safety Modular Absorber) 110P / TL3 Crash Cushion is designed and manufactured in Italy. It is the first of its kind to successfully perform both European and American crash ratings:

•  Speed class 110 km/h crash test according to the European Standard EN 1317
•  TL3 test according to the American Standard NCHRP 350

Replace an entire damaged unit at a lower cost than repairing it

The current marketplace in Canada for crash cushions has changed very little in the last 10-15 years: traditionally there have only been two manufacturers.

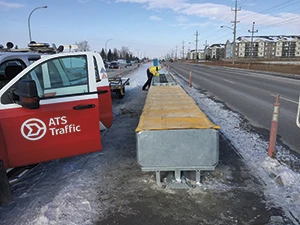

With the introduction of the SMA 110P Crash Cushion install to North America, higher safety standards are now available at a lower cost than current crash cushions on the market today. In 2017, ATS Traffic Install teams completed the first successful North American installation of SMA 110P Crash Cushions in Winnipeg, Manitoba.

The reduced cost of using the SMA crash cushion allows cities to install more units at a time without extensive budget restraints. Using this product, it is now possible to replace an entire damaged unit at a lower cost than repairing it. The unique nose design can reduce repair costs by $1500 per impact.

The manufacturer (Industry A.M.S.) is currently having more items tested for the latest MASH crash rating. We are eagerly awaiting the MASH approval for the T4 end terminal. Once approved, it will change the way we look at guardrail end treatments in terms of safety, ingenuity and cost savings.

Features

ATS Image28110

SMA 110P units come fully assembled rather than in kits, which ensures they are installed to the manufacturer’s specifications and perform with the optimal safety standards.

Product installation can be modified based on different needs and requirements. The SMA Crash Cushions can be installed:

•  On concrete bases using bushes and bolts welded to the metallic wire;
•  On concrete bases using chemical anchors;
•  On asphalt using concrete anchors.

If the unit is damaged due to impact, it can be repaired on-site in an average of 30 minutes or less.

NFC Technology

ATS Image28118All SMA units also come equipped with NFC chips, which can store manuals and inventory management tools. The NFC tag is a small black cap attached to all SMA devices with a unique serial number. This chip stores information, history and product specifications for that specific device. Using a mobile app on a Smartphone, owners can trace the history, specifications, repair and restoration procedures, spare part information and quick request orders for spare parts for all SMA devices in the palm of their hand.

Benefits

•  Crash-rated by both European and American standards, with additional crash testing including:
•  Test at 130 km/h with vehicle mass of 1400 kg;
•  Test at 100 km/h with instrumented dummy onboard to calculate biomechanical parameters
•  Higher safety standards at a lower cost than Canadian industry standard
•  Compact size compared to industry standard, with advantages for occupied space inside the containers (12 units in a 40-foot container)
•  Manufacturer guarantees less probability of impact due to reduced size
•  Steel nose is durable and reduces maintenance costs by up to $1500 per impact
•  Economic pricing allows for more installs, which equals more lives saved on our roads
•  Warranty period of 20 years from the date of installation without impact
•  Global endorsement, with use in countries across the world including Asia, the United Kingdom, Romania, Norway and more

Testimonials

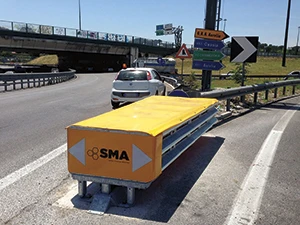

ATS Image28127

“Safetyverse has installed the Safety Modular Absorber (SMA) Crash Cushion manufactured by Industry A.M.S. for both public sector and private sector clients in both Malaysia and Thailand… our customers find the SMA attractive for the following reasons:

1. The steel nose is durable and reduces maintenance costs;
2. The short length (for any given speed) means fewer nuisance impacts;
3. Locked absorber panels make the unit virtually vandal-proof; and
4. The economical price enables crash cushions to be installed at more locations which help to save even more lives.”

-Patrick K. Clancey, Director –
Business Development
Safetyverse, Southeast Asia

If you’d like to know more about SMA Crash Cushions or other Crash Attenuation products, contact ATS Traffic’s Crash Attenuation Solutions Specialist – Kyle Hirschkorn at 604.883.3561, or:
