XL1000 and SK1000 Series
Fort Garry Industries Ltd., a major supplier in the new and used trailer and equipment market. The Truck Equipment Division sells, installs and services everything from concrete mixers, gravel boxes and sand spreaders, to snow plows, street cleaners, and more. Transport Canada has certified all Fort Garry Industries installation facilities with a National Safety Mark; a label that indicates modifications comply with all current Canadian Motor Vehicle Safety Standards (CMVSS). ‘FGI’ is also the exclusive Western Canadian distributor for a number of trusted names, including Midland Manufacturing.
Midland Manufacturing Limited has played a prominent role in the development and manufacture of construction trailers and truck bodies since its incorporation in 1976. The use of advanced design and manufacturing techniques, along with its commitment to working with end users of its product has allowed Midland to supply the products that meet the rigorous demands of today’s marketplace.
Midland’s ongoing focus on research and development has enabled the development of a wide range of trailers that meet or exceed the industry standard. This line includes End-Dump, Side-Dump and Bottom-Dump trailers, all of which are available in many different styles and configurations.
XL1000 Gravel Bodies

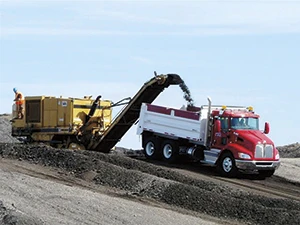

This XL1000 ‘KleenSide’ body is a proven performer. Widely used as a durable and reliable road maintenance vehicle, this body is versatile enough to be used for a wide variety of other tasks as well.
Standard features for floor and sides include 3/16” AR200, no cross members and 3/16” x 10” ‘Hat’ longitudinal sills. Features also include 10 Ga. inside panels with formed top rail and centre horizontal rib, along with a one piece outer side panel (no horizontal weld) and side board extension gussets.
The body front is 42” standard height of 10 Ga. high strength steel. The Gate is 42” in height, with 10 Ga. horizontal ribs (4). Greaseless top hinges and a ‘Drop Forged’ self-adjusting Dual Action Gate Latch System are included.
Other Features
• Heavy Duty Spread Chains
• Continuous Welds in All Critical Areas
• Composite Gate Hinges (Greaseless)
• Self Cleaning Rub Rail, Gate, Ribs and Bumper
• Tail Light in Rear Post (each side)
• Unique Dual Action Gate Latch System (service-free; self-adjusting)
• Prime Paint
• Four (4) Mud Flap Anti-Sail Brackets
• Rubber Mounted Sealed Lights c/w Wiring
Available Sizes
• Popular box lengths: 9’ – 23’
• Side Heights: 30” or 36”
• Capacities: 4.9 through 13.8 cu. yd.
Options include: Top mounting hoist; 59” front (in lieu of 42”) to accommodate cab shield; front 3/16” AR200 (‘Trunnion’ mount) or 3/16” AR400; heavier floor (higher tensile); 48” front gate; sloped gate; two-way gate; high lift gate (less hook-up for truck); cab shield; paint (solid color); safety struts (set); manual gate trip lever; cables supplied with PTO and pump; pump cable and connector kit; lever controls; tower c/w cable controls; installation.
SK1000 Gravel Bodies

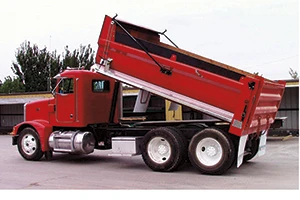

Midland states the SK-style dump body is fast becoming the body of choice for contractors. Unlike the XL1000 series, the SK Series offers a flat bottom with a radius approach to the side wall. The one-piece floor/side wall construction is available in 3/16” or 1/4” AR200 and HX450 steel, and the SK’s smooth interior ensures an easy cleanout, every time.
Standard features for floor and sides include 3/16” AR200, no cross members and 3/16” ‘Hat’ longitudinal sills. Bodies also offer 30” standard height sides, a one-piece formed top rail and side board extension gussets. The body front is 42” standard height, of 10 Ga. high strength steel with a ‘Dog House’ hoist. The Gate is 42” in height, with composite gate hinges (greaseless). Unique to the industry is Midland’s secure service-free Dual Action Gate Latch System. The self-adjusting latching mechanisms and air trip cylinders require no lubrication or adjustments to maintain trouble-free performance. The bumper is of heavy-duty formed C-Channel.
Other Features
• Aluminum Fenders (Full Length / Bolt On)
• Heavy Duty Spread Chains
• Unique Dual Action Gate Latch System (service-free; self-adjusting)
• Continuous Seam Welds (in critical areas)
• Anti-Sail Mud Flap Brackets
• Rubber Mounted Sealed Marker Lights
Available Sizes
• Popular Box Lengths: 9’ – 23’
• Side Heights: 30”, 36”, or 42”
Options include: 36” or 42” side height; manual gate trip lever; AR400 3/16” or 1/4” floor and sides; various front and gate heights; hi-lift or sloped gate; ‘Trunnion’ mount hoist (3/16” front); body safety props; full or half cab shield; double-acting gate; tarping system and side boards.
Midland’s use of technological advances, such as ‘CNC’ cutting and bending equipment, along with 3-D solid modeling and engineering equipment has enabled it to maintain a superior level of product quality and performance. Since 2007, Midland has implemented and followed “Lean Manufacturing” principles – which has increased quality and productivity, and is part of its ongoing commitment to excellence.
For further information contact your local Fort Garry Industries location, or visit: www.fgiltd.com
