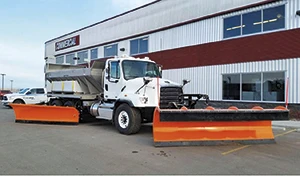

A Monroe Plow and Spreader Combination unit pictured at Commercial’s Calgary facility. The unit features a Monroe 15’ sander, 12’ reversible front plow with blade saver system, 10’ rear mount wing with ‘panic raise’, 15’ MSHD Bibeau Box, and a GPS-compatible Parker IQAN controller system.

The Monroe Truck Equipment Snow & Ice Division has been manufacturing quality equipment since 1983. It markets and services products throughout the world and has an international network of distributors in the USA and Canada. Monroe manufactures a complete line of winter road maintenance equipment and is represented in western Canada by Commercial Truck Equipment.

Plows

Monroe manufactures a complete line of snow plows. The range includes Full Trip Reversible, Deep C-Shaped, C-Style Torsion Trip Edge, J-Style Torsion Trip Edge, Flex Plow, 1-Way Full Trip, MP311 and MP312 1-Way, 1-Way High Speed Slotted Trip, Expressway and V-Plows.

Full Trip Straight Reversible Plows

Monroe straight reversible plows feature a full list of advanced specifications. Slotted Trip, Compression Trip Edge, and Torsion Trip Edge plows are available in 10’, 11’, and 12’ lengths, with available heights of 36”, 41”, and 48”. Durability is provided with horizontal bracing and a heavy duty 3/4” x 4” x 4” bottom angle.

The cutting edge is 5/8” x 8”, AASHTO top punched. Durable compression springs, heavy duty 4-point hinged pushframe, various light packages, two double-acting 3” x 10” reversing cylinders with adjustable Chevron packing, crossover relief valve, ship and car channel A-frame, and abrasion-resistant hoses with steel clamps complete the long list of standard features.

Full Trip 1-Way Plows

1-Way plows incorporate the same rugged design characteristics as straight reversible plows. Specifications include all those listed for the straight reversible plows with the main difference of a ‘No Trip’ feature, heights of 30” and 39”. 1-Way plows are also available in fixed angle or reversible with an adjustable moldboard pitch. They are manufactured in 100% continuously-welded moldboard and with heavy duty, 4-point hinged push-frames.

Spreaders

Monroe’s line of spreaders includes Tailgate, V-Box and All-Season models. The Tailgate series includes the Under Tailgate, Roll, Replacement Tailgate and Rear Cross Conveyor. The V-Box series includes the MSVP, Mid-Size, MCV, Combination and Duz-Mor. All-Season Dump Body/Spreaders are also available.

MSPV

The MSPV V-box is ideal for the small municipality or contractor that does not require a large amount of snow and ice control.  This unit is designed for use in pickups, platforms and small dump bodies.  It is available in mild or stainless steel, with a 10.5 engine with wireless remote control or hydraulic drive, and electric drive conveyor with wireless remote.

Standard Features: • 8’ Hopper Length • 501 ⁄2” Width; 32” Height • 1.8cu yd Capacity • 12ga. Hopper Shell; 12ga. Formed Longsills Slotted for Drive and Idler Shaft Removal • 11 ⁄4” Drive & Idler Shafts • Heavy Duty 4-Bolt Flange Bearing • Sloped Sides • 20:1 Gear Box • 6-Tooth Cast Iron Sprockets • Bolt-On Spinner with Seal Saver Kit • Wireless Cab Control, Variable

Options: • 11HP Honda Engine in lieu of 10.5HP Briggs & Stratton or Hydraulic • 1 ⁄4” or 3 ⁄8” Top Screens • Turnbuckle Mounting Kit • Binder Mounting Kit • Battery • 6” Box Extension • Inverted V • Center High Mounted Stop Light • 16oz Neoprene Tarp • 12” Extended Spinner • Dual Motor (Electric)

Mid Size V-Box

The mid-size V-box is designed for use by municipalities or contractors for granular snow and ice control needs.  This unit is designed for use on platforms or small to medium sized dump bodies, and is available in mild or stainless steel.

Standard Features: • 8’-10’ Hopper Length • 501 ⁄2” Width • 2.5-3.9cu yd Capacities • 12ga. Hopper Shell; 10ga. Formed Longsills Slotted for Drive and Idler Shaft Removal • 11 ⁄4” Drive & Idler Shafts • Heavy Duty 4-Bolt Flange Bearing • Sloped Sides • 20:1 Gear Box • 6-Tooth Cast Iron Sprockets • Inverted V

Options: • 11HP Honda Engine in lieu of 10.5HP Briggs & Stratton • 1 ⁄4” or 3 ⁄8” Top Screens • Turnbuckle Mounting Kit, Heavy Duty • Binder Mounting Kit, Heavy Duty • Battery • 6” Box Extension • Center High Mounted Stop Light • Bolt-On Spinner • 12” Extended Spinner • Extended Self-Loading Leg Kit

Wings

Monroe’s full line of Wings include the Mid-Mount Extendible, Junior, Patrol – single and double function, and the Heavy Duty Benching Wing.

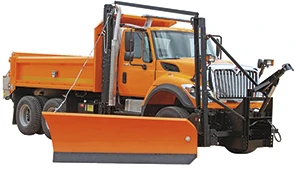

Heavy Duty Benching Wing

The Heavy duty, all-purpose front or mid mount wing is designed to clear snow from roads and shoulders. This wing is available with various choices of post configurations and moldboard trip styles and sizes. 40” and 60” benching height are also available.

Standard Features: • 3 ⁄16” Formed Moldboards • 4” x 4” x 3 ⁄4” Moldboard Bottom Angle • 1 ⁄2” Moldboard Ribs • Structural I-Beam, Direct-Lift Front Post with 31 ⁄2” x 62” Lift Cylinder • Single Telescoping, Three-Position Adjustable, Spring Cushioned Pusharms with Shear Pins • 100% Powder Coated Orange

Options: • Rubber Snow Deflector • Custom Side Plates • Cast iron Moldboard Shoe • Wrap-Around Curb Guard to Prevent Moldboard Heel End Damage • Cable Lift Front Post • Carbide Cutting Edge for Longer Cutting Edge Life • Rear Valve Cabinet & 40 Gallon Reservoir • Left Side Mount • Full Trip or Torsion Trip Moldboard • Straight Moldboard • Optional Front & Rear Posts • 40” Benching Height

Underbody Scrapers

The Underbody Scraper line consists of the MS4500, FMB3500 (folding moldboard), MF5 and MS3500FX.

FMB3500 (folding moldboard)

The FMB3500 is a Heavy duty, all-purpose underbody scraper for snow and ice removal.  The folding moldboard is designed for use with carbide cutting edges. It is capable of plowing snow at various speeds and withstands snow pack and ice. Ideal for Spring/Summer/Fall gravel shoulder and road maintenance.

Standard Features: • Moldboard – Length: 10’, 11’ & 12’; Height: 20” • Two Piece Moldboard – Upper Deflector is 1/2” x 10” – Lower Deflector is 3/4” x 9” • 1” x 10” Hangerboard • 1/2” x 6”, AASHO Punch, Double Beveled Cutting Edge • (2) 3” Actuating Cylinders • 1” Solid Circle • 5” Center Pin • Two 4” Power Reverse Cylinder • (4) Heavy Duty Long Travel Spring Assemblies for Absorbing Road Shock • Moldboard Angles up to 45˚

Options: • 1” x 8” Heavy Duty Hanger Bracket • Carbide Cutting Edge • Special Paint • Wrap Around Curb Guards

Liquid Systems

The Liquid Systems line consists of Pre-Wet, Anti Icing and Vegetation Control equipment.

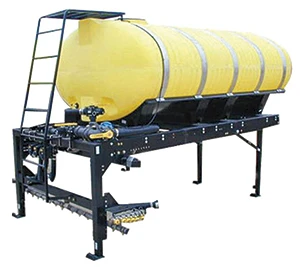

Anti-Icing System with self-loading leg kit

Anti-Icing is a proactive approach to snow and ice control. It is used in areas where liquid chemicals could be applied early enough, prior to precipitation, to prevent snow or ice from bonding on road surfaces. Anti-Icing makes cleanup quicker, reduces labor hours and reduces wear on snow removal equipment.

For more information contact your local branch of Commercial Truck Equipment, or visit:

www.comtruck.ca
